Recent work.

Commercial packages across manufacturing, civic, community and multi-residential sites in Melbourne’s south-east.

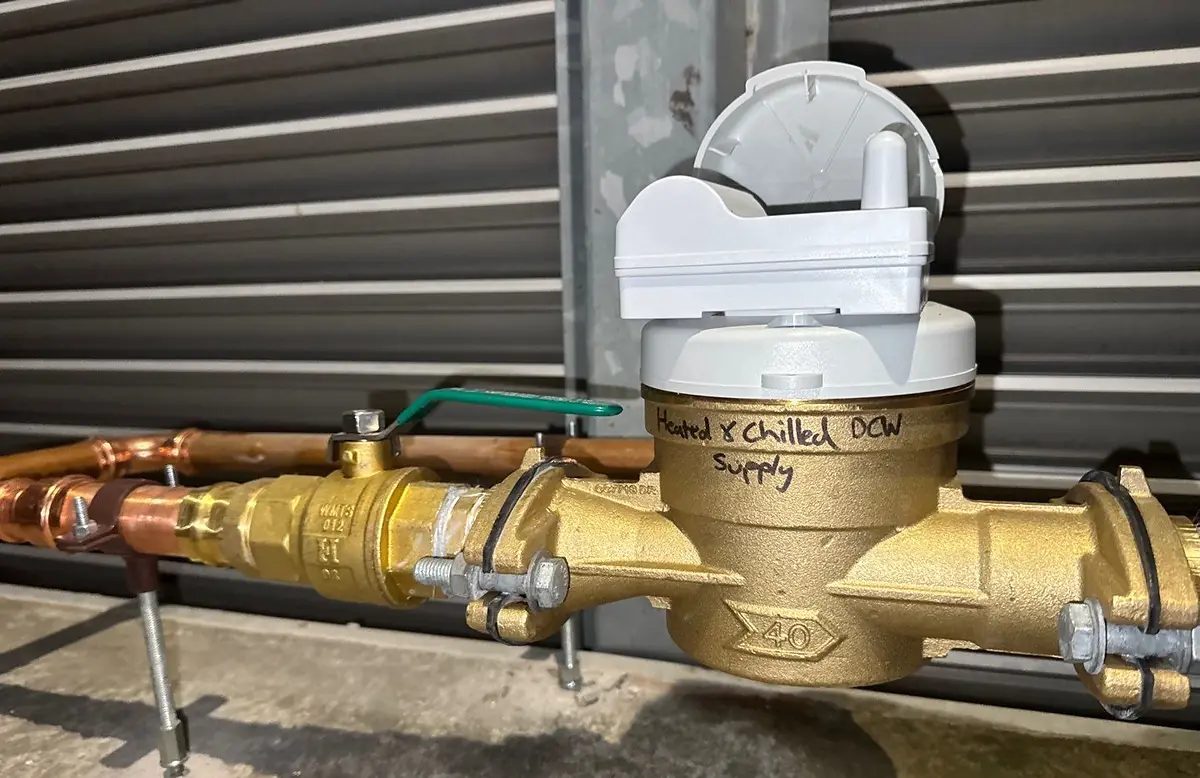

40mm water meter with IoT data logger installed on a labelled supply line

Metering & monitoring

Water metering & IoT data logging

Large-format retailer · Richmond

Five sub-meters with IoT logging to the incoming main, kitchen hot and cold, mechanical top-up and dishwasher services. Installed after hours, tested and certified.

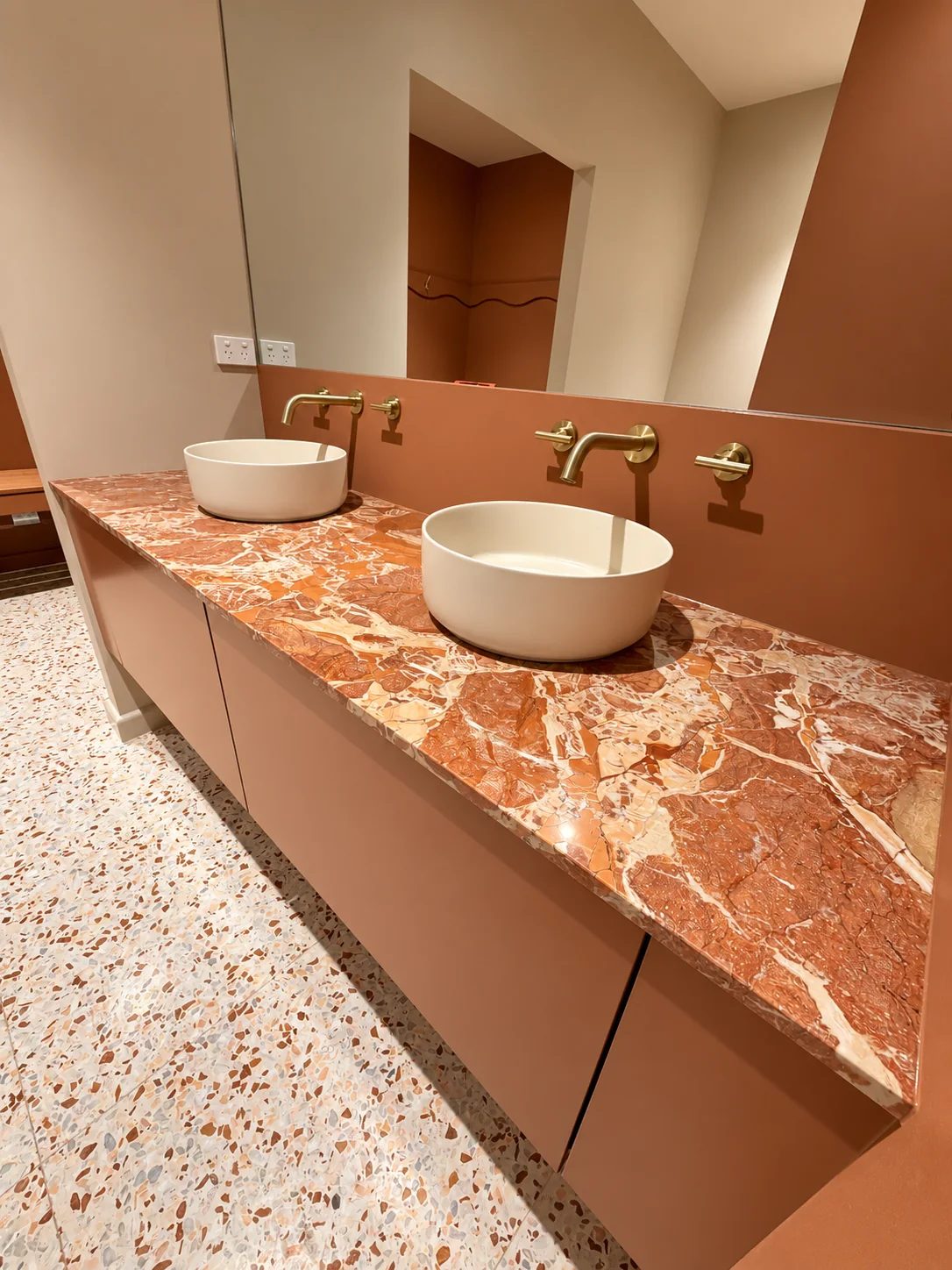

Twin above-counter basins on a stone benchtop with wall-mounted brass tapware

Fit-out

Boutique pilates studio fit-out

Commercial builder · inner Melbourne

Rough-in and fit-off — new cold water service, concealed greywater pump to a hydration station, three basins, two suites and seven shower outlets.

Twin DN150 backflow assemblies on a renewed water and fire service

High-rise strata

Water & wet fire service renewal

Owners corporation · Cremorne Street, Cremorne

Renewal of the water and wet fire services to an occupied high-rise apartment building, staged around residents with no extended outage.

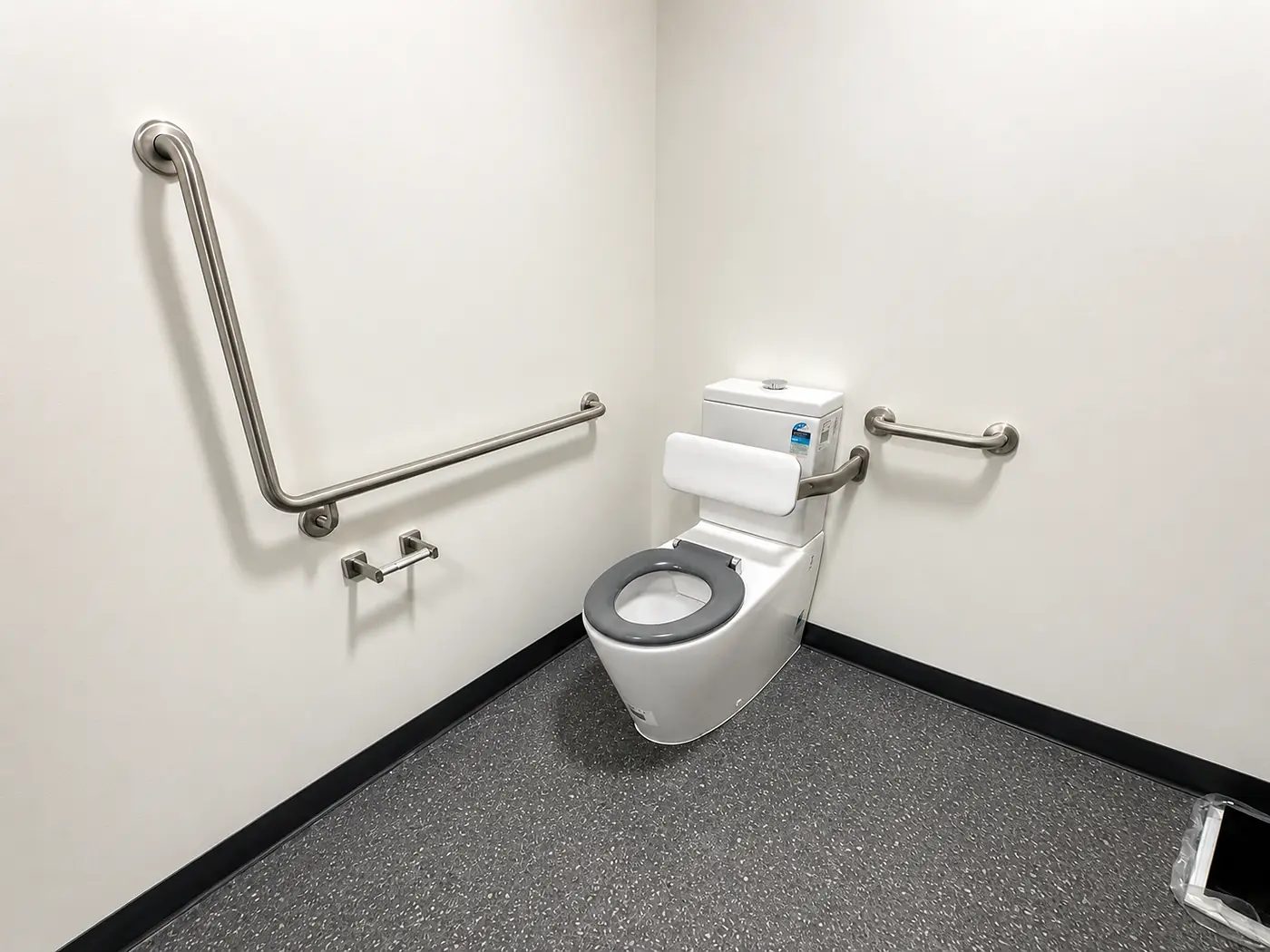

Completed accessible amenity with grab rails and compliant fixtures

Civic

Temporary library amenities upgrade

Told Constructions

Amenities upgrade delivered for the head contractor on a live, operating site.

Trade waste tank set in excavation with outlet pipework connected

Trade waste

3kL trade waste tank, pipeline & water supply

Temple, south-east Melbourne

Trade waste tank, connecting pipeline and water supply to a new temple building, with the authority requirements addressed at design stage.

Stormwater and sewer pipework bedded on gravel in an open trench

Multi-residential

Civil drainage, Darling Street, South Yarra

Tier 2 builder

Civil drainage package to a multi-residential development.

Completed commercial amenities building on an industrial site

Manufacturing

Amenities building

National cosmetics manufacturer

Hydraulic package to a new amenities building, including water supply and storage.

In the ground

Civil work, before it’s covered.

Trade waste tank set in excavation with outlet pipework connected — Tank set, outlet connected3kL tank bedded in the excavation with the pipeline trench cut ready to lay.

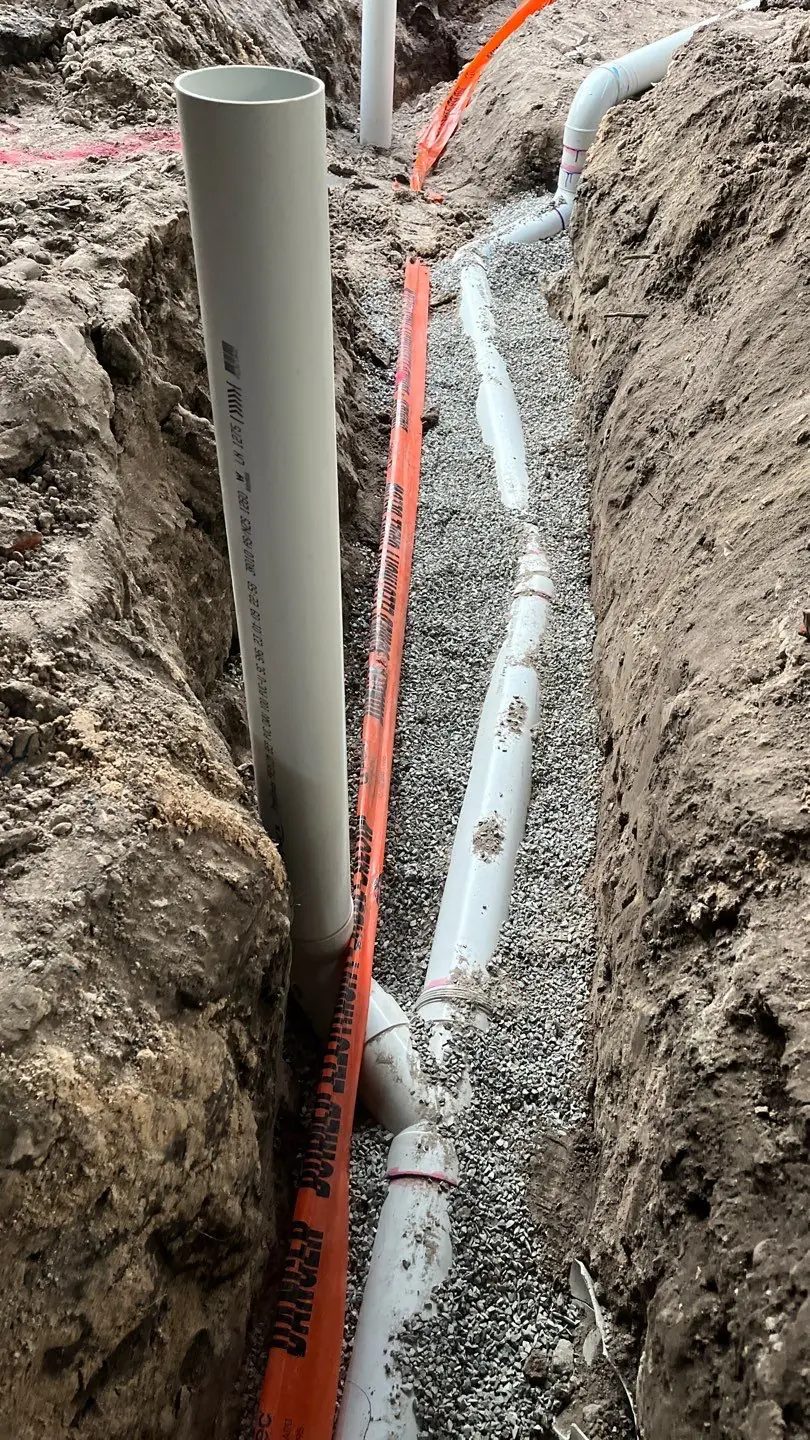

Stormwater and sewer pipework bedded on gravel in an open trench — Pipe laid and beddedSewer and stormwater runs bedded on gravel with marker tape over, ready for inspection before backfill.

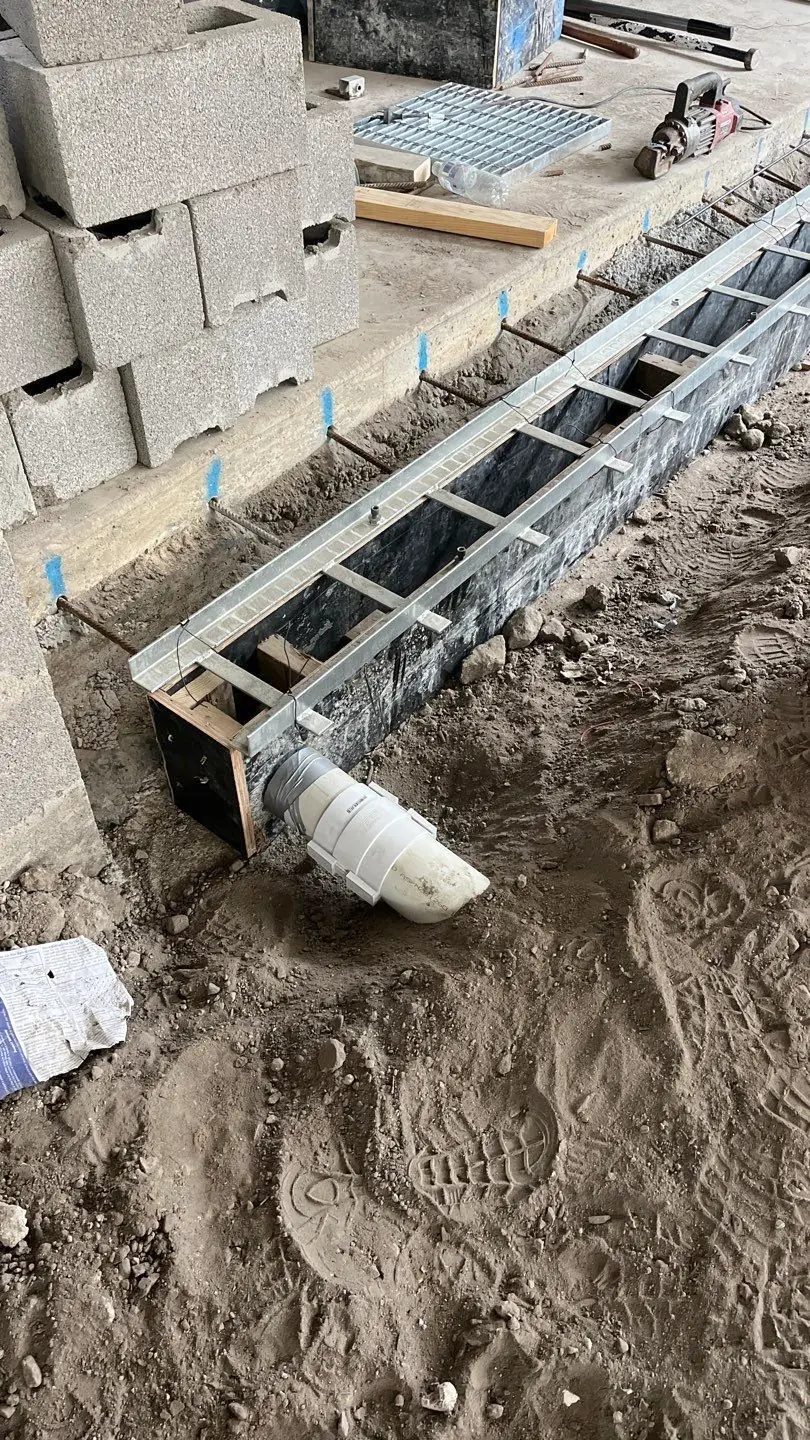

Strip drain formwork with outlet boxed and connected before pouring — Strip drain, formed and connectedChannel formed to fall with the outlet boxed and connected before the pour.

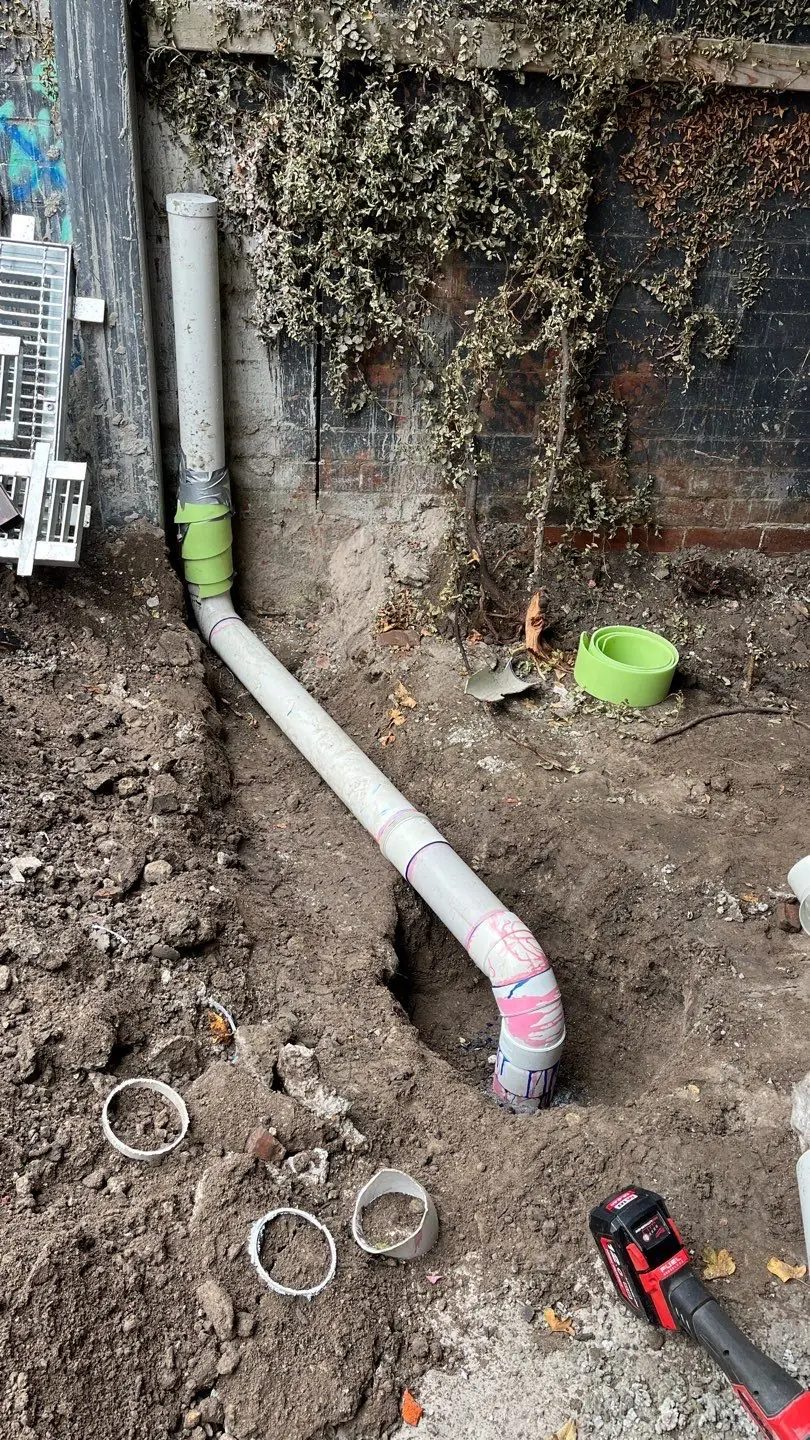

Downpipe turned into the ground and connected to underground drainage — Downpipe to undergroundStormwater turned into the ground and connected, in a tight boundary excavation.

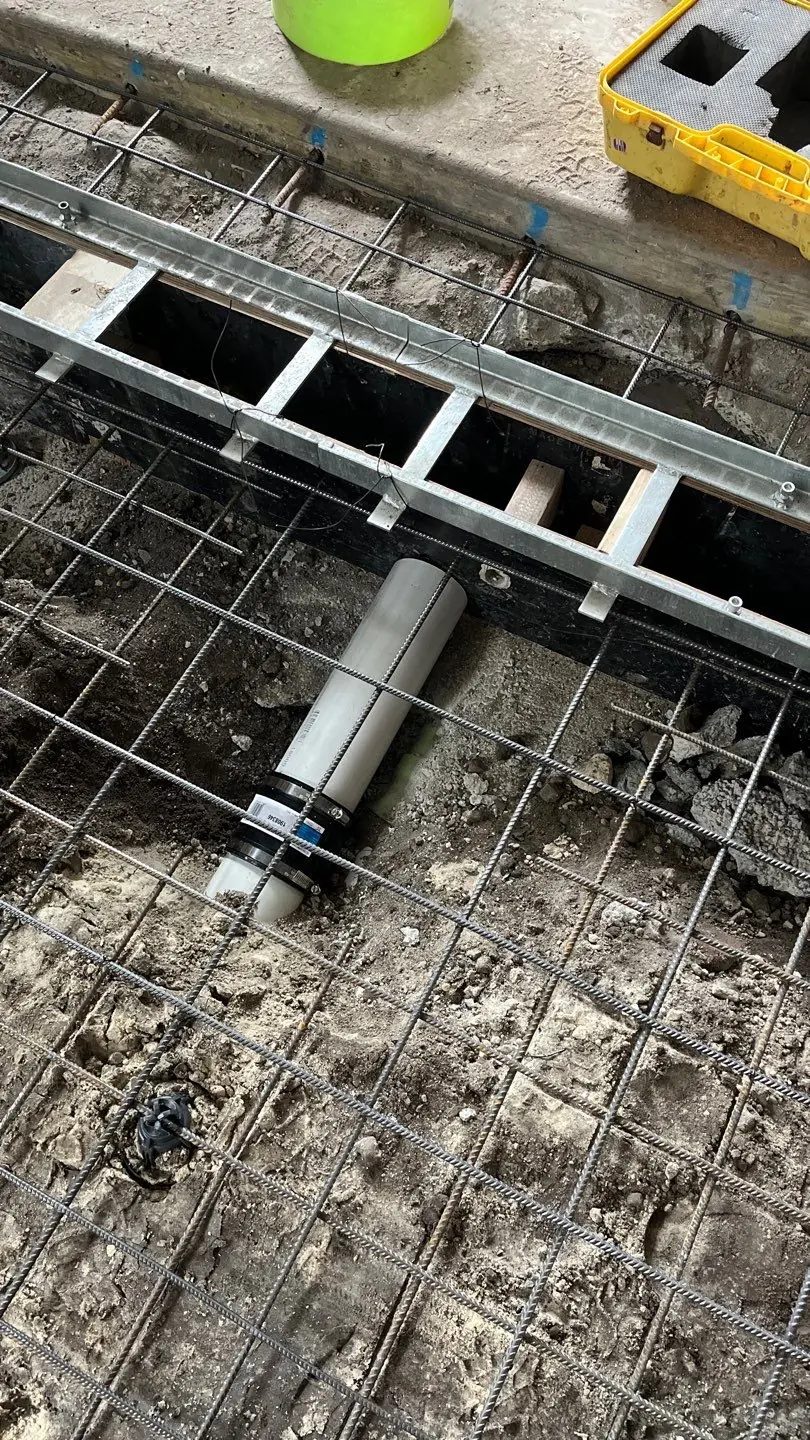

Drainage penetration set through slab reinforcement before the pour — Penetration set through reoSet out and fixed before the pour — the alternative is coring a finished slab.

Steel reinforcement and formwork over an in-ground tank before the concrete pour — Reinforcement before pourFormwork and reo set with access openings boxed out, inspected before covering.

Completed concrete lid slab with access covers set flush — Covers set flushFinished lid slab, rated for the traffic the area carries.

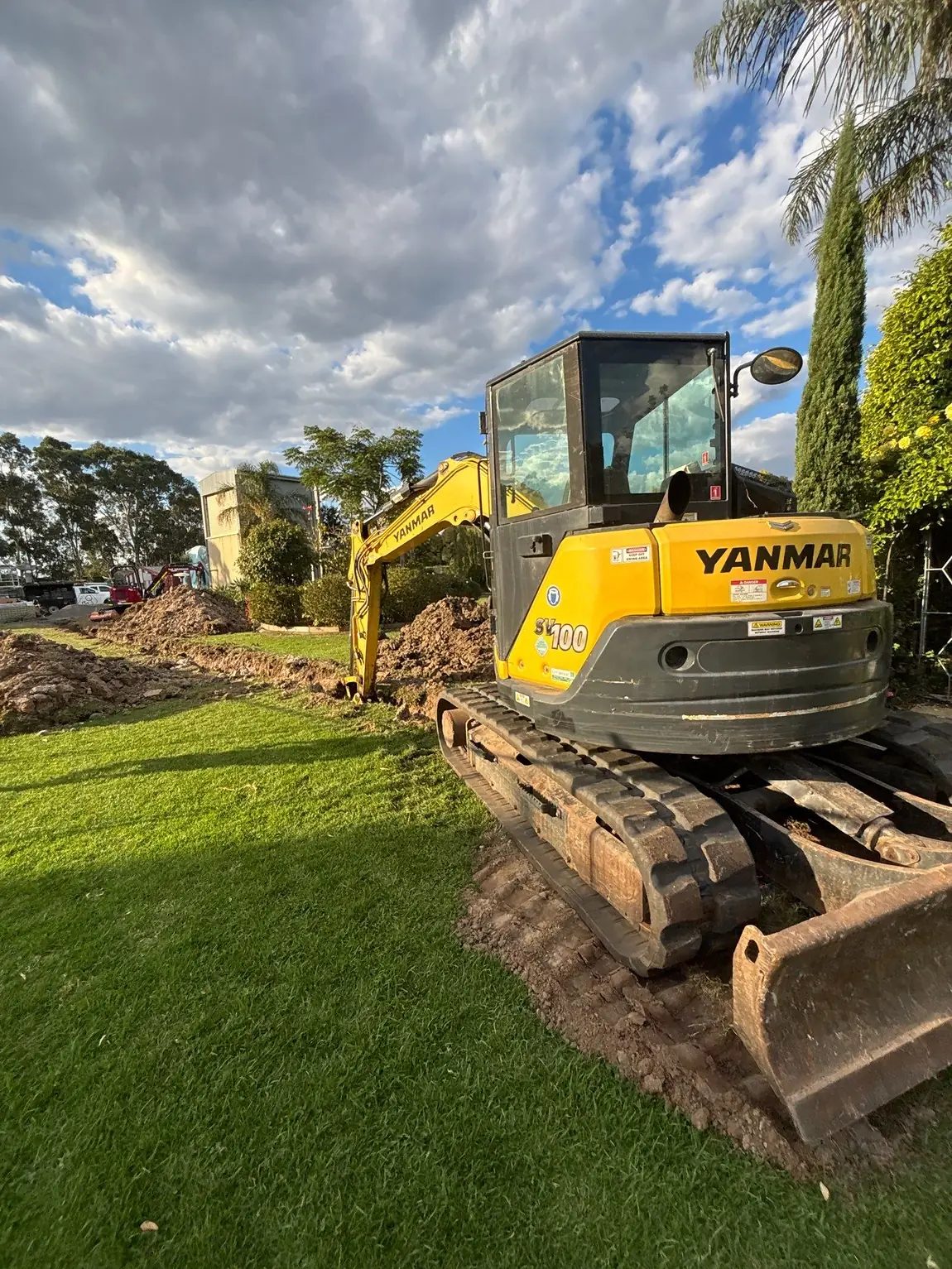

Excavator on a commercial site with trench works underway — Plant on siteMachine excavation where access allows, hand-dug where services converge.

Excavator cutting a drainage trench across a commercial site — Trench lineServices located and marked, then cut to survey levels before pipe is bedded.

Footpath excavation around live services with barricading and dewatering — Around live servicesBarricaded, dewatered and hand-cut, then reinstated to match existing.

Above ground

Installed and left serviceable.

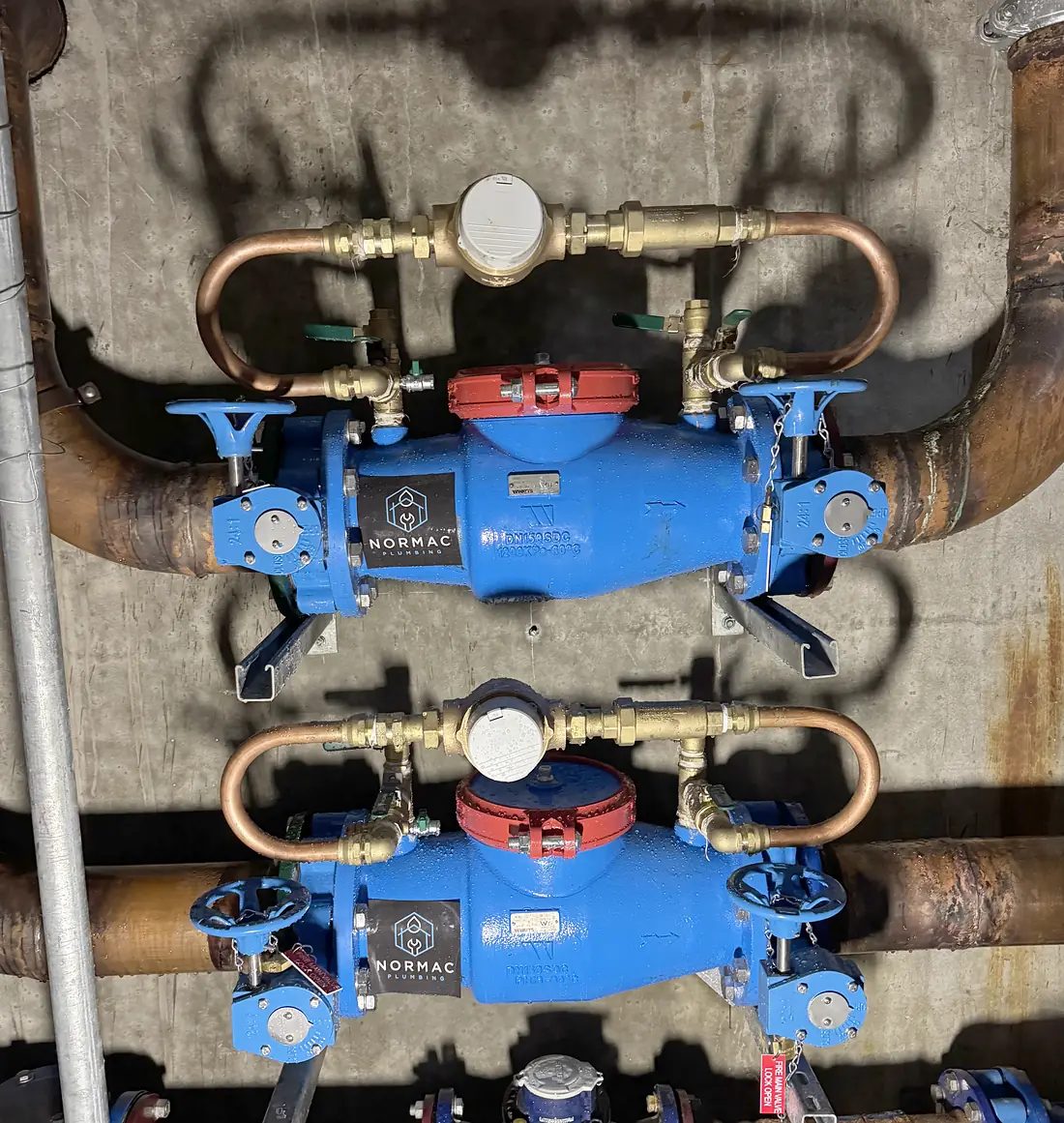

Twin DN150 backflow assemblies with isolation valves on a renewed water and fire service — Water & fire service, renewedTwin DN150 assemblies with meters, isolation and a locked-open fire main valve.

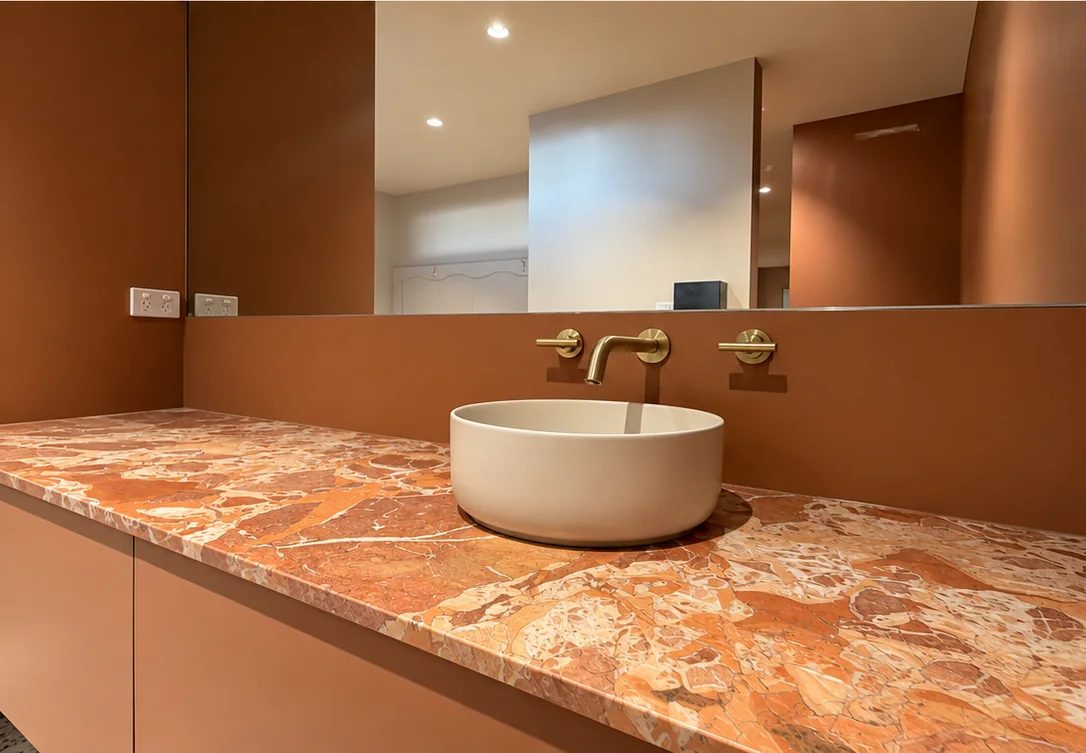

Above-counter basin with wall-mounted brass tapware on a stone benchtop — Basin, wall-mounted setAbove-counter basin with concealed wall mixer, set out to the stone and the mirror line.

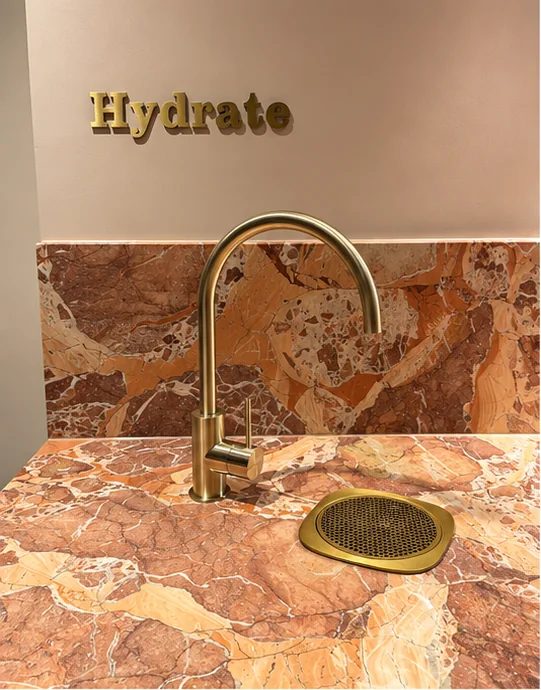

Hydration station with stone benchtop, brass tapware and concealed greywater pump — Hydration stationNo waste point nearby — a greywater pump concealed in the joinery discharges back to a new tundish.

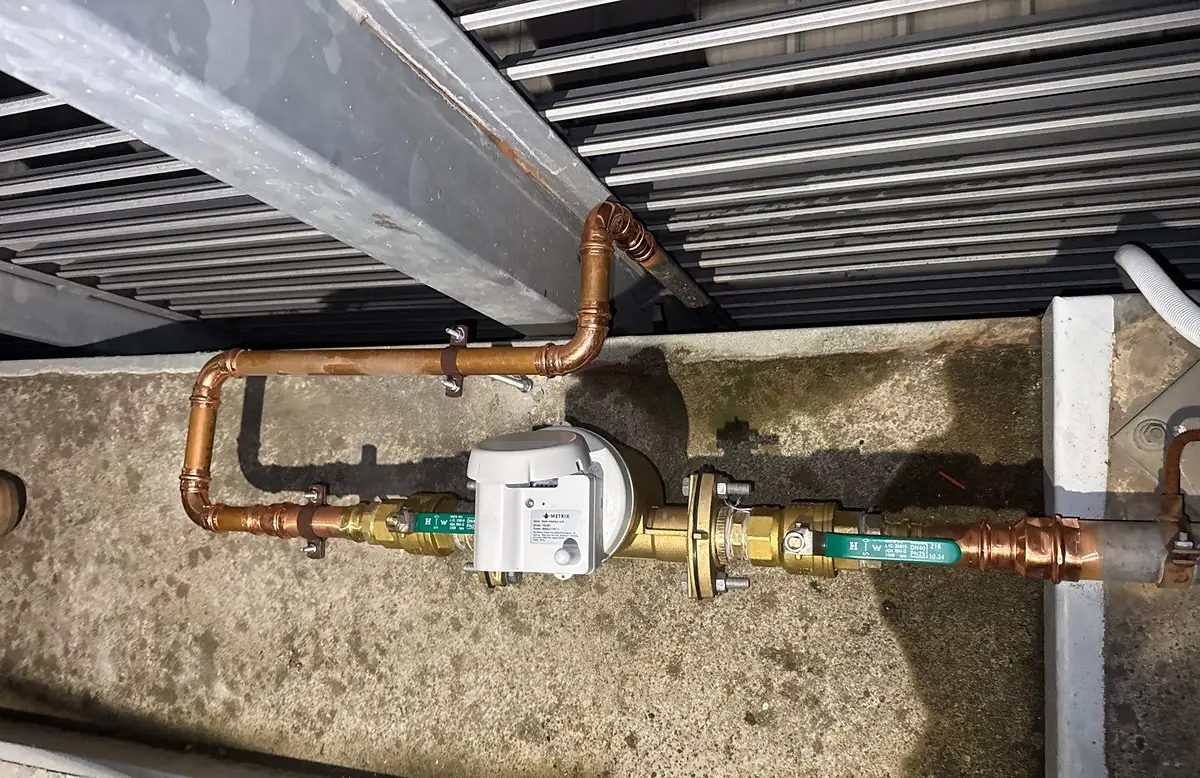

Water meter with IoT data logger on a copper service — Meter & data loggerSub-meter with IoT logging, isolation either side so it can be serviced without draining the run.

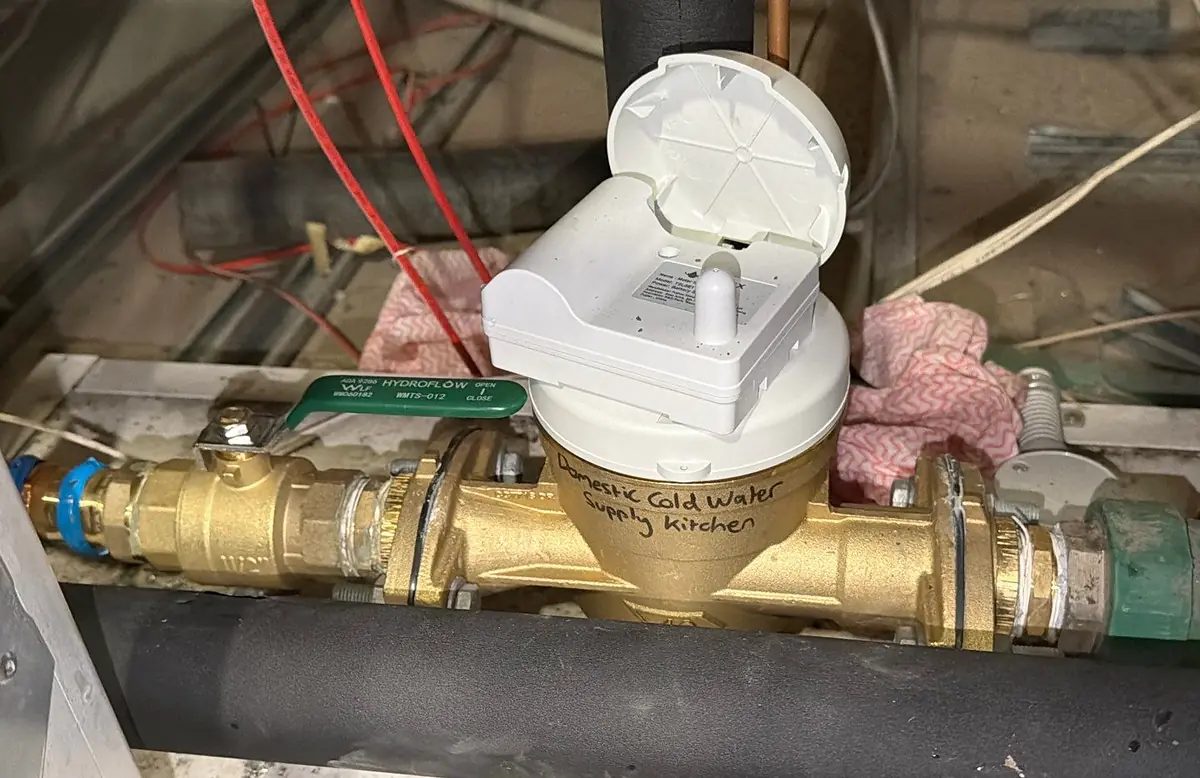

Labelled kitchen cold water meter with data logger — Labelled at the meterEvery meter marked with the service it reads — so the data means something a year later.

Labelled and tagged water and gas manifold with individually metered isolation valves — Metered manifoldEvery unit individually metered, isolated, labelled and tagged.

Triple vertical multistage pressure pump set — Pressure pump setDuty, standby and rotation, each pump individually serviceable.

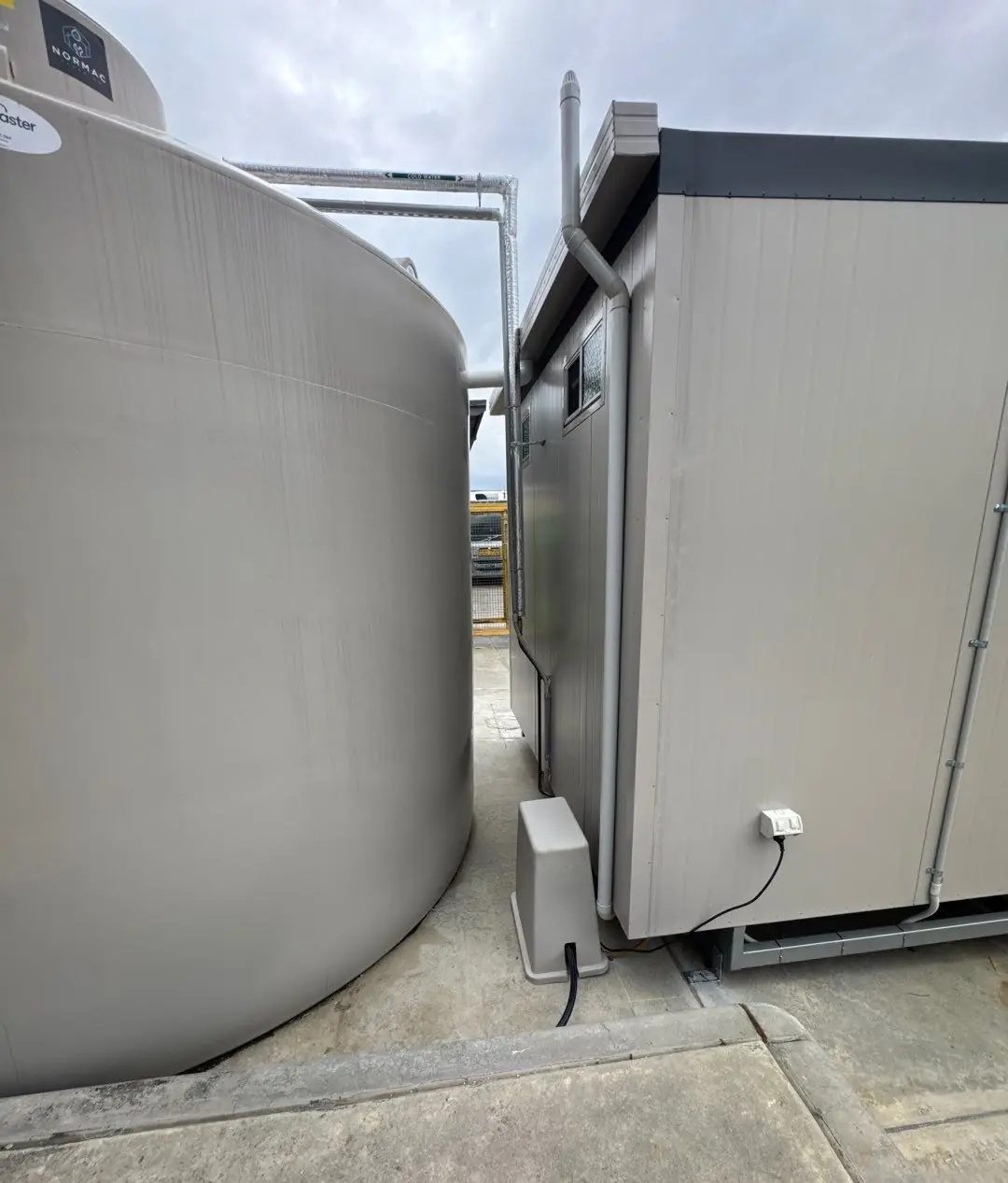

Water storage tank installed alongside a commercial amenities building — Water supply & storageTank and charged supply line to a new amenities facility.

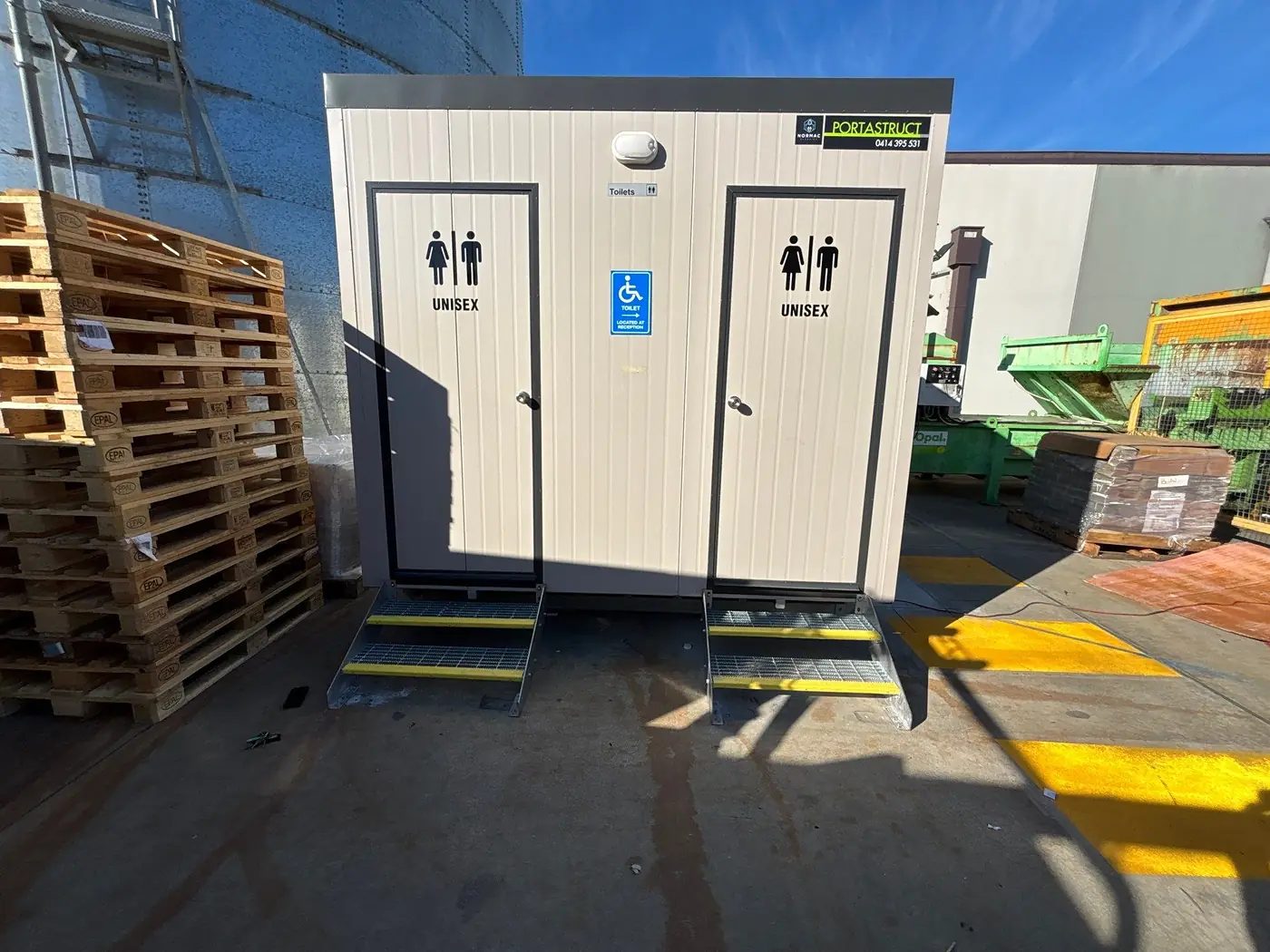

Completed commercial amenities building on an industrial site — Amenities buildingHydraulic package to a new facility on an operating manufacturing site.

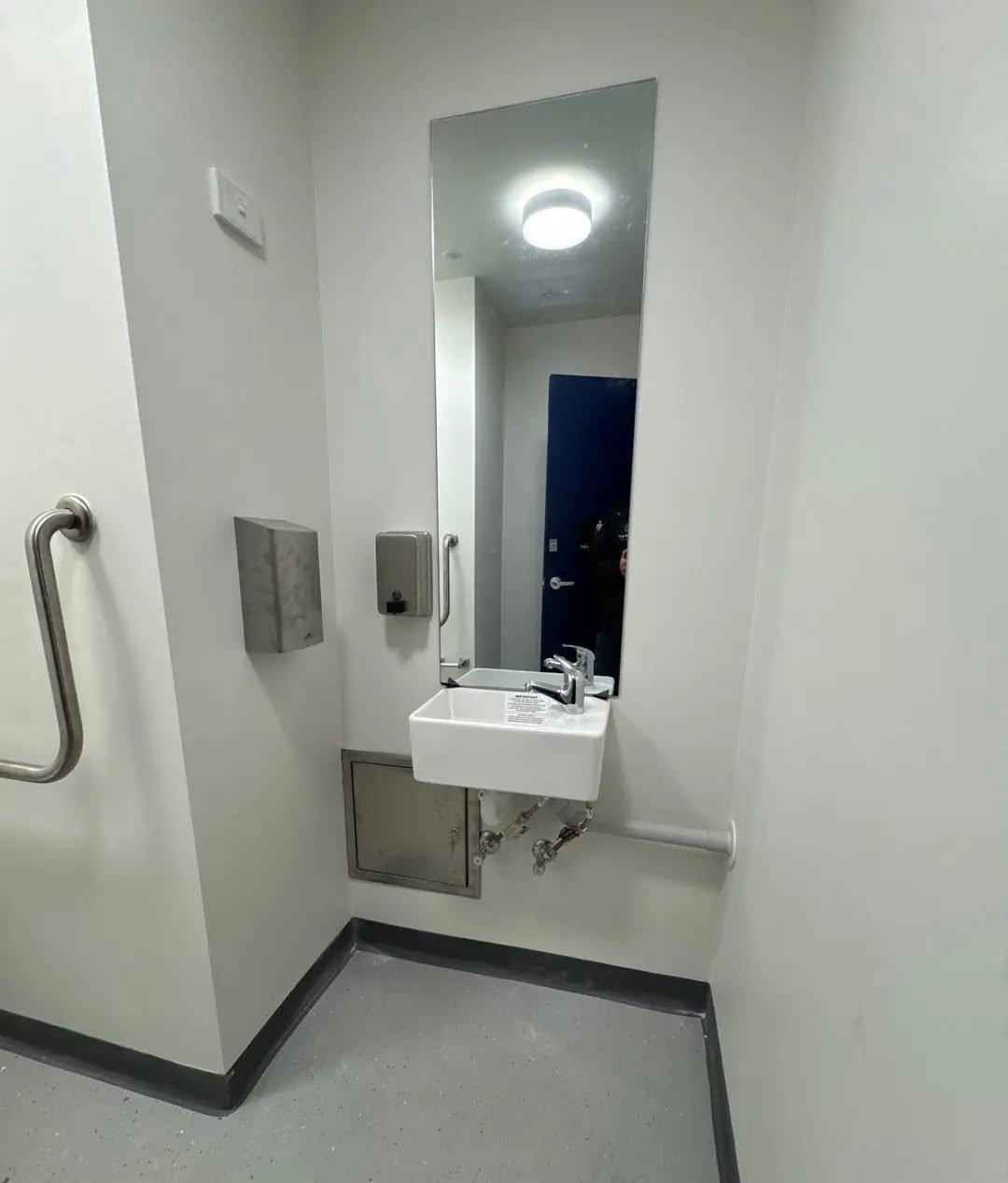

Wall-hung basin, tapware and service access panel in a completed public amenity — Amenities fit-offFixtures set out, trapped and connected, with service access maintained.

Break tanks installed in a commercial plant room — Break tanks & booster setStorage and booster pump feeding a food-grade facility, installed clear of the floor and serviceable.
